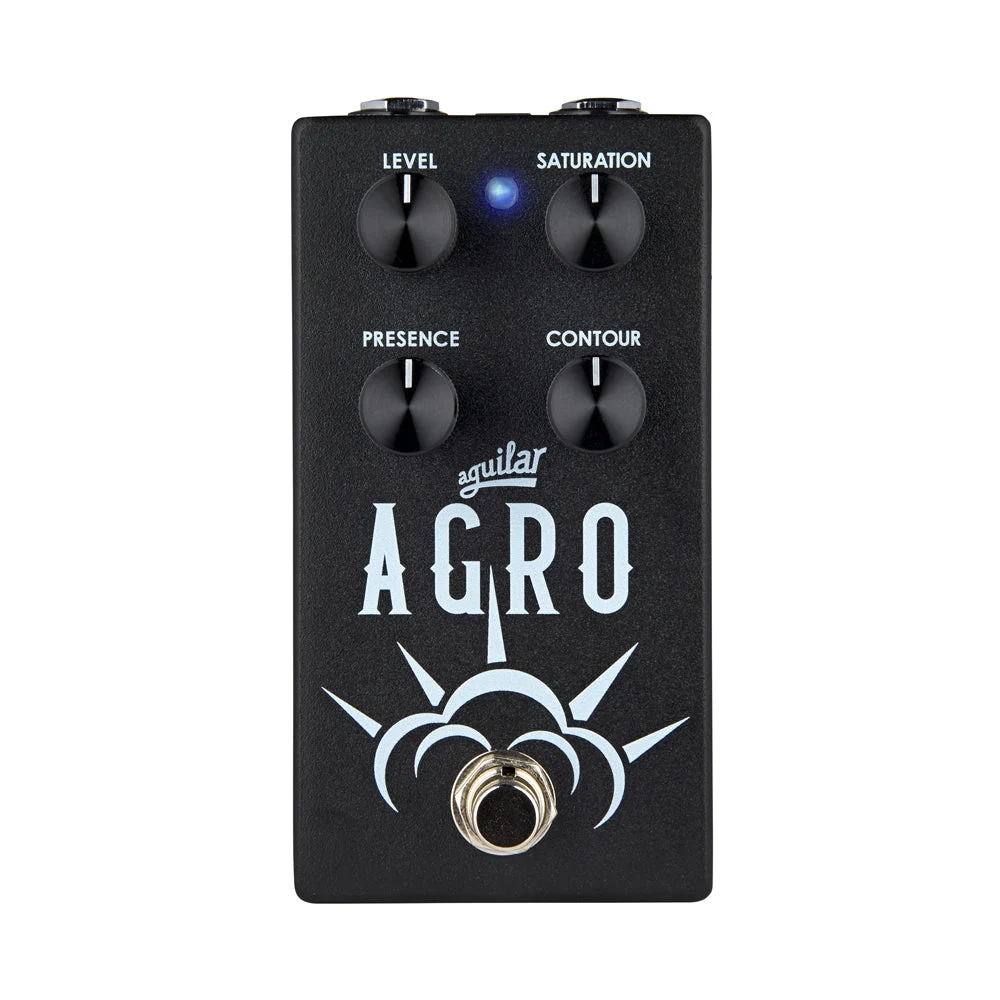

Aguilar Agro v2 Bass Overdrive Pedal.
New look for 2023, same great overdrive pedal!
The AGRO overdrive pedal is designed to give bass players a wide range of overdriven sounds, producing everything from warm, tube-like overdrive to full on distortion with an intuitive control set for shaping your sound.
Capable of producing everything from warm, tube-like overdrive to full-on distortion, this pedal will give you the grind you need without sucking out your low end. The AGRO® offers a wealth of overdriven sounds within an easy to use, 4-knob layout.
The SATURATION control offers a tremendous range of distortion, while the CONTOUR control allows you to dial in a scooped or a more aggressive, boosted midrange sound. The PRESENCE knob adds the right amount of ‘attack’ ensuring that your bass remains defined, even with the most saturated settings. The output LEVEL control guarantees that you’ll be able to get the distortion you want at any volume level.
FEATURES
- Separate Saturation and output level controls
- Contour control: broad spectrum mid scoop centered around 900Hz
- Presence control: + 6dB/-20dB>4kHz
- Inputs: One 1/4″ jack
- Outputs: One 1/4″ jack
- Power: 9v power supply
- Warranty: Three year limited
FUNCTIONS
- LEVEL: Controls the output volume
- SATURATION: Controls the amount of saturation
- PRESENCE: + 6dB/-20dB>4kHz
- CONTOUR: broad range mid scoop @ 900Hz (ccw=max scoop (~20dB) cw=flat)
- ENGAGE: Toggles between on and off. The blue LED indicates that the effect is on.
SPECIFICATIONS
- Current consumption: 7mA
- Input impedance: 1MΩ (Effect On)
- Output impedance: 1 KΩ
- Maximum Output: +6dBu (1.6VRMS)
- Noise Level: -91 dBu ‘A’ weighted *
- Battery Power: 9V
- External DC Power: 9-10 VDC center terminal negative
All specs with knobs set to 12 o’clock except:
* = Saturation set to minimum
+ = nominal input of -20dBu
